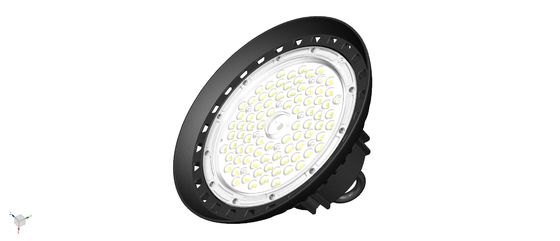

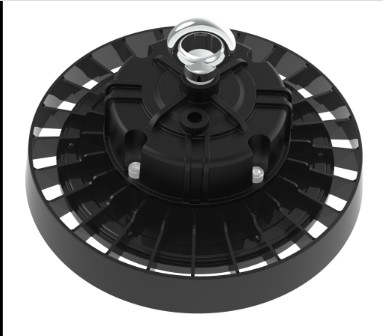

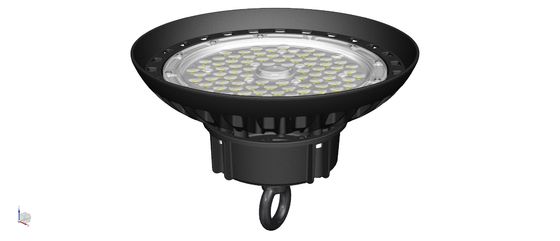

Name: 200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HBXXX-CG1
Availability: InStock

Home Products LED Highbay Light

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HBXXX-CG1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	100/ 150/ 200/ 240W	Input Voltage:	AC90-305 50/60HZ
IP Rating:	IP65	Warranty:	5 Years
IP Ranking:	IP65	LED Chips:	Lumiled SMD3030
Highlight:	led flat panel light fixture , high bay led shop lights

Dualrays Eco Type HB3 High Bay Lights IP65 for Industrial Application IP65 Competetive Price

SAN'AN High Brightness SMD3030 LEDs,

DUALRAYS Own-developed Non-isolated Driver;

IP65/IK08 Protection;

60°/90°(with lens)/120°(without lens) beam angle optional;

D-Mark tested for the use in paper production,wood processing etc with toughened glass;

Multiple installations: loop hanging, ceiling mounting, wall mounting, pipe mounting;

Various intelligent control: 1-10V,Daylight sensor,Zigbee and Emergency;

Customized supported for special projects

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 2

Model No.	DR-HB100-CGXP	DR-HB100-CGXP	DR-HB100-CGXP	DR-HB100-CGXP
System Watts/W	100W	150W	200W	240W
System Efficiency/LPW	14.000±5%	21.000±5%	28.000±5%	33.600±5%
Efficiency/ lm/w	140LM/W
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	3000K/4000K/5000K/5700K/6500K
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60° / 90° / 120°
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LED Driver	Meanwell ELG/ HLG
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Emergency(Optional)	Available
Protection Class	ClassⅠ
Material	Aluminum+PC
Lifespan/hrs	>50.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)
Dimension/mm	Φ350*210mm
Installation(Optional)	Ceiling Mounting, Wall Mounting, Ground Mounting
Certificate	CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available;

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 3

Character/Power	100W	150W	200W	240W
A	Ø250mm	Ø300mm	Ø340mm	Ø340mm
B	178mm	181mm	183mm	183mm

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 5

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 7

DALI Device
200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 14

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 18

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 21

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 22

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 23

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 24

200W UFO High Bay Lights IP65 For Industrial With 5 Years Warranty 25
