Name: 80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-TP080-EG52
Availability: InStock

Home Products TB6 LED Tubular Light

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-TP080-EG52

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	80W	L80:	>50000hrs
Wiring:	Inside The End Cap	IP Grade:	IP66
CRI:	>80Ra	Warranty:	5 Years
Highlight:	explosion proof led lights , vapor proof led light

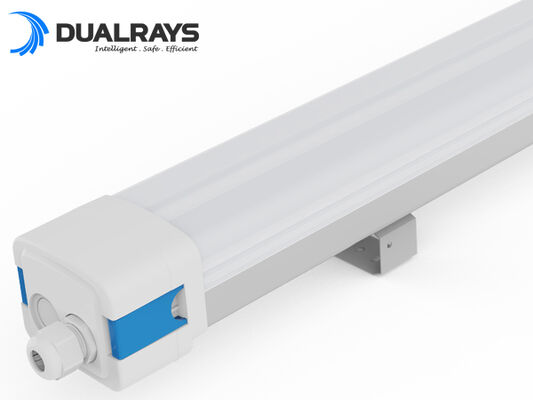

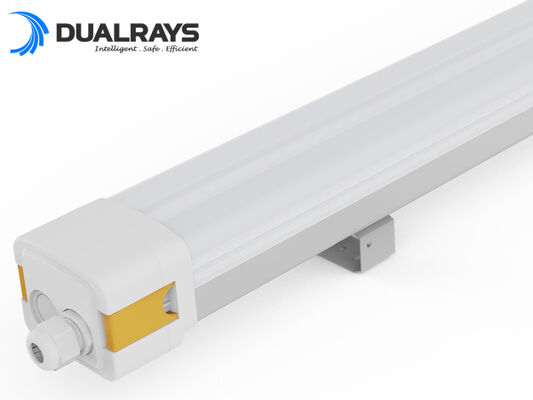

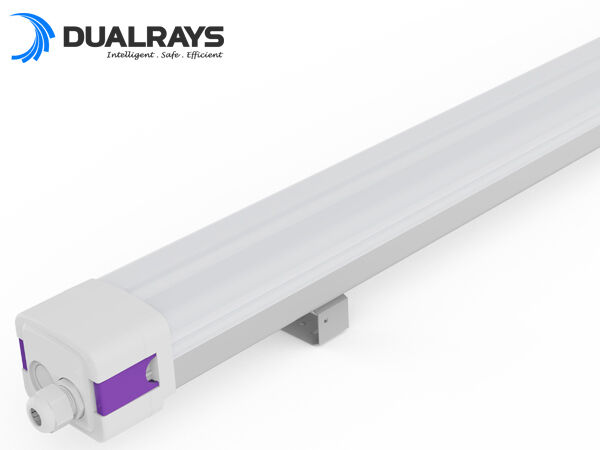

80W 12800lm Vapor Proof LED Tri-proof Light with Easy Wiring Method Saving Time

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;

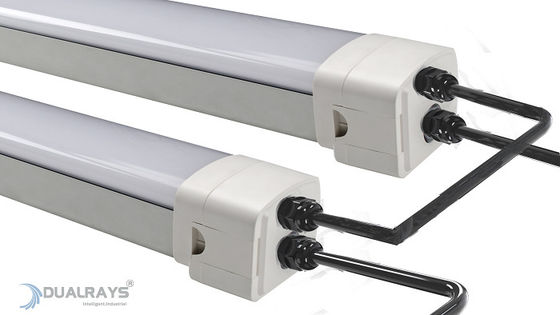

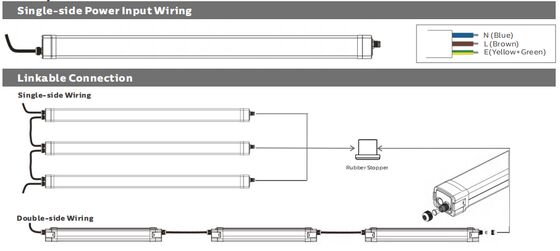

> Multiple Link with double wiring;

> No UV or IR and completely mercury free;
Options:

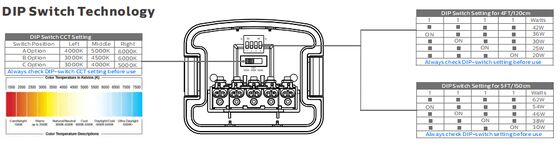

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

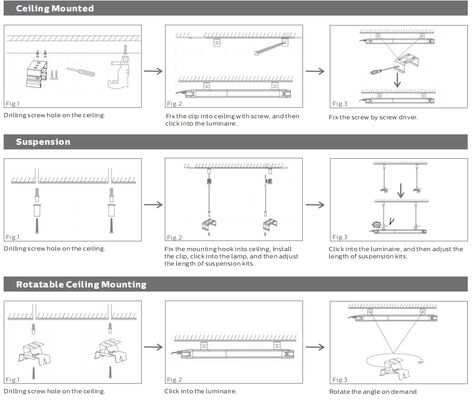

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.

> Customized supported for special projects.

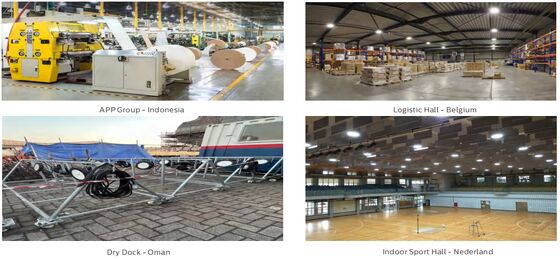

* Workshops and warehouse

* Garage and car parks

* Outdoor & Indoor Locations

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 2

Model No.	DR-TP080-EG51
Rated Power/W	80
Luminous Flux/LM	12800
Systen Efficiency/LPW	160
SDCM	<5
Installation Option	Bracket/Suspending
Certificate	CE ROHS

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 3

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 5

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 7

DALI Device
80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 10

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 21

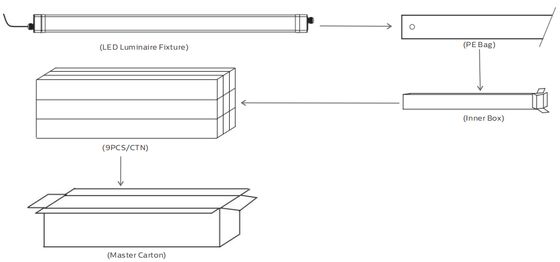

Packaging Information

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 22

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 23

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 24

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 25

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 26

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 27

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 28

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 29

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 30

80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 31

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 32

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
80W 12800lm Vapor Proof LED Tri proof Light with Easy Wiring Method Saving Time 34

(Partnership)
