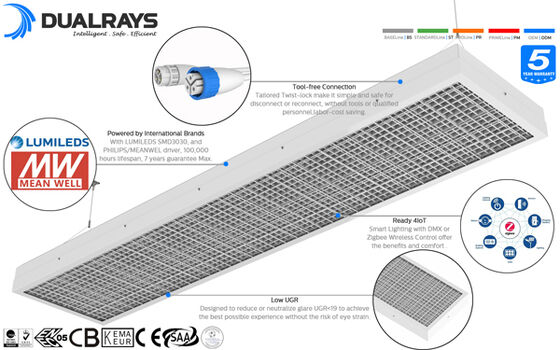

* SAN'AN SMD2835 (0.5W) High Brightness LEDs light source with CRI>80Ra, SOSEN/Meanwell Driver Optional;
* Low Glare, Especially Suit for Indoor Sport Hall Lighting Solution;
* IP65 / IK10 Protection;
* 120° beam angle;
* IP20/IK10 Protection;
* UGR<19;

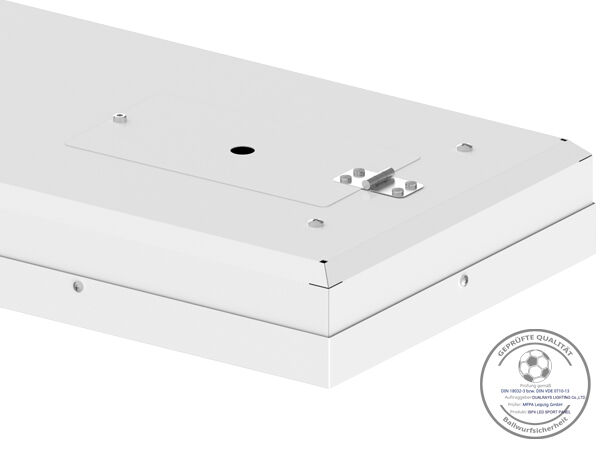

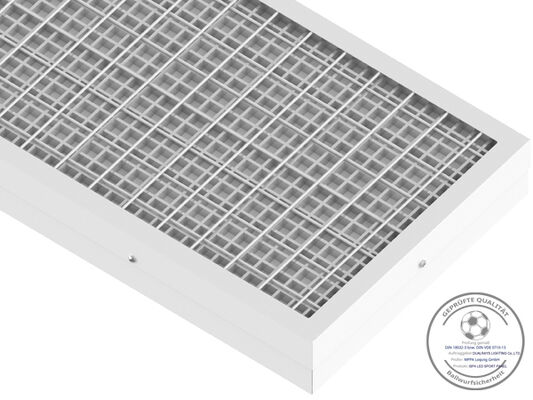

* Ball impact test DIN18032-3 (DIN VDE 0710-13) approval
* Multiple Installations: Suspension, Ceiling Mounting Optional;
* Various Intelligent Control: 1-10V, Zigbee and DALI for Option;
* No UV or IR and completely mercury free;
* L80/B10 @ 76.000h;
* Customized supported for special projects;
Options:
> Driver: MEANWELL / SOSEN / PHILIPS Non-SELV driver optional.
> Controls and Dimming: 1-10V, Zigbee and DALI for Option;
> Installation: Suspension, Ceiling Mounting Optional;

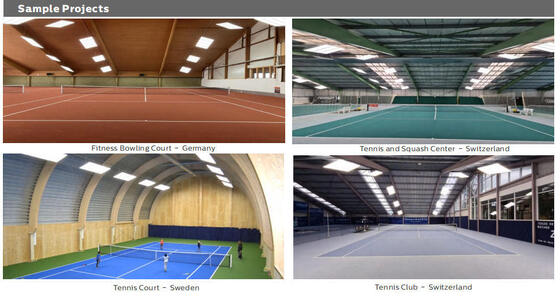

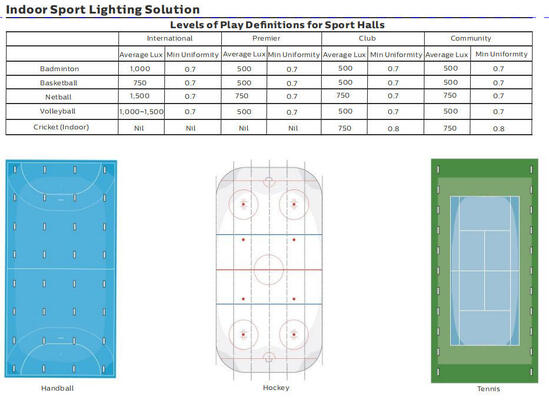

> Tennis court;
> Indoor sports stadium;
> Badminton court;
> Sport Hall;
> Corridor/Gallery/Corridor;
| General System |
| Housing Material: Extruted aluminium according to the EN755 standard |
| Diffuser Material: Extruted PC according to the UNE-EN ISO 21305-1:2020 standard, UV filter conditional(IK10) |
| Housing Color: White (RAL9016), Other colors optional |
| Uniformity: >0.70 (DIN EN 12193 Class I) |
LEDs Thermal Dissipation: Through finless 6063 AL luminaire body, without conductive fluids. Passive convection dissipation
ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Lamp type: LED Exchangeable |
| Light Outlet: Direct |
| Recommended Mounted Height: 5 - 15 meters |
| Maintenance: Diffuser Open / Close with screw |
| Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired |
| Dimming Control: ON-OFF | 1-10V | DALI2 | Zigbee Dimming |
| IP (Ingress Protection Rating): IP20 |
| IK (Impact Resistance): IK10 |
| Protective Class: Class Ⅰ |
| Glow Wire: 850°C (Under 30s) |
| Cable Entry: H05RN-F 3*1.5mm2 | H05RN-F 5*1.5mm2 (Max section 4mm2) |

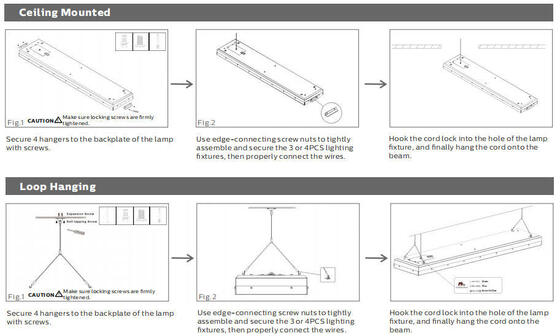

| Installation: Ceiling Mounted | Loop Hanging |
| Smart Function: Emergency |
| Electrical System |
| Through-wiring: 3*1.5mm2 | 5*1.5mm2 | 3*2.5mm2 | 5*2.5mm2 wires through for option |
| Main Voltage: 220~240VAC/ 50/60Hz, 180-264VDC |
| Power Factor (PF): ≥0.96 |
| Total Harmonic Distortion (THD): ＜10% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: ＜1% |
| Stroboscopic Visibility Measure (SVM): ＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst): ＜1 |
| Terminal Connection: 3*1.0mm2 as stand, max 3x2.5mm2 + 2x1.5 mm2 dimming wire, free wire ends, tailored length |
| Luminaires Power B10A B16A C10A C16A |
| 100W 13 20 19 32 |
| Module via LSS Circuit Breakers 150W 9 14 13 21 |
| 200W 6 10 9 15 |
| Photometry System |
| LEDs: SMD2835 (0.5W) |
| CCT(Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) |
| CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| EEC (Energy Effciency Class): A++ |
| SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional) |
|
UGR (4H, 8H) : 24.9 (Cross)
23.4 (Longitudinal)
|

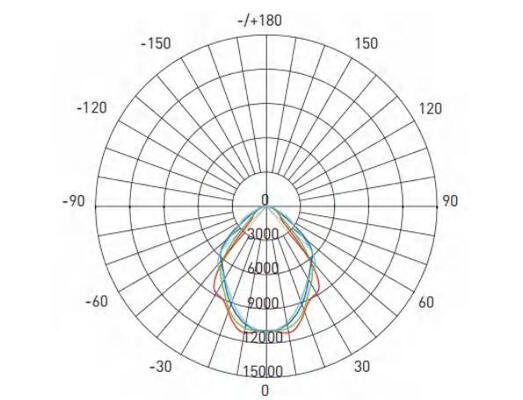

| Beam Angle: 120° |
| Average Luminaire Useful Lifetime: 95.000 hours (L80B10) |
| Lumen Maintenance at e.o.l. >70% |
| Luminous Efficacy: 130LPW (PROLine) |
| Rated Power: 100W 150W 200W |
Lumens Delivered
@ 5000K, CRl>80 (PRO) 13,000lm 19,500lm 26,000lm |
| Operation Condition |
| Operation Temperature / Humidity: -20~ +50℃ (-4°F ~ 122°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -40~ +60℃ (-40°F ~ 140°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10: ≥0.96 |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>80.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 4000K/80Ra, 10% efficiency higher with 70Ra

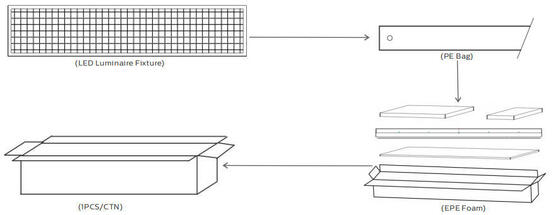

| Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 100 Nil 1580x380x140mm 1PCS 12.2Kg 13.8Kg |
| 150 Nil 1580x380x140mm 1PCS 12.8Kg 14.6Kg |
| 200 Nil 1580x380x140mm 1PCS 14.3Kg 15.9Kg |
Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!
Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.
Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.
* Professional team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the TB7 LED Tubular light?
RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.
Q3: What is CRI?
RE: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly >80Ra,and 90Ra with higher cost.
Q4: Can I only buy the housing separately?
RE:Sorry,we only supply the whole luminaire fixture,but SKD/CKD can be accepted.
Q5:Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q6:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q7: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.
Q8:What are the applications of your TB7 LED Tubular light?RE:Our higbay light can be applied in the following occassions:
> Replacement for fluorescent NCF;
> Food Processing Plant;
> Chemical Facilities;
> Animal Stable Warehouse;
> Car Washing Place;
> Outdoor & Indoor Locations;
Welcome to contact us for more information, visit our official website www.DUALRAYS.com or send us email to info@DUALRAYS.com to get the latest information and support.
