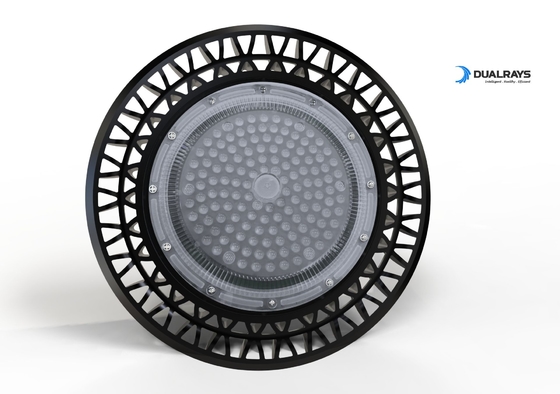

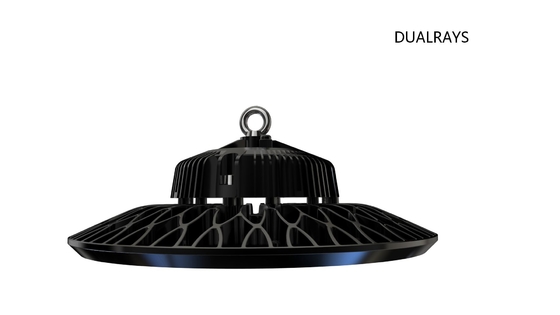

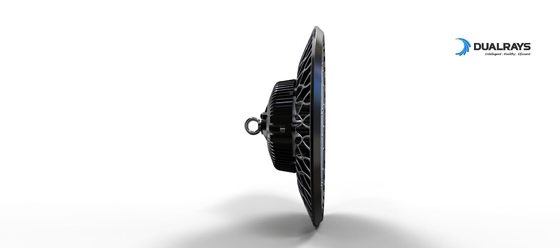

100W CE ROHS CB ASS SMD3030 Waterproof IK08 With 5 Years Warranty UFO High Bay Light

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-EG1

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	100W	LEDs Typ:	SMD3030
Luminous Flux:	14,000±5%	IP Rating:	IP65
Power Factor:	PF>0.9	Warranty:	5 Years
High Light:	high bay led shop lights , wireless led outdoor flood lights

100W CE ROHS CB ASS SMD3030 Waterproof IK08 With 5 Years Warranty UFO High Bay Light

UFO LED High Bay Features:

Efficiency:
STANDARDLine:

PROLine: 140LPW

PRIMELine:
Features:

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;

* IP65 Protection;

* 60°/90°(with lens)/120°(without lens) beam angle optional;

* IP65 Protection;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen

> Controls and Dimming

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Item	Description
LED Light Source	SMD 3030
Sensor	Dayight/Pluggable Motion Sensor
LED Driver	Meanwell HBG/ELG/HLG,Sosen
THD	<10%
SDCM	<5
Rated Input Voltage/V	AC100~277V 50/60Hz
Installaion	Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects;

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

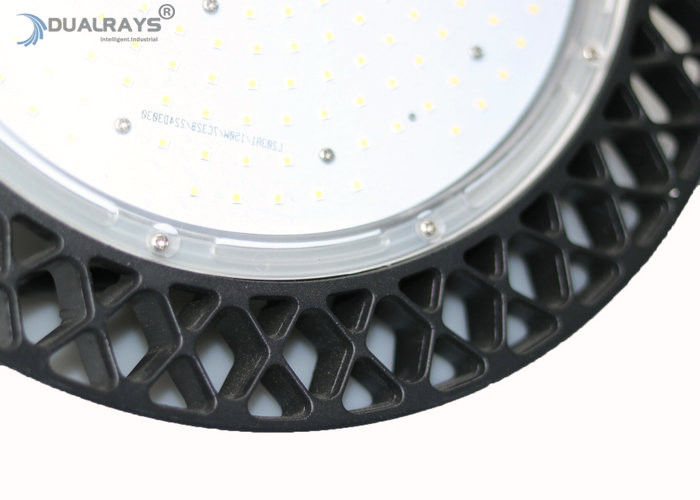

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty 100W CE ROHS CB ASS SMD3030 Waterproof IK08 With 5 Years Warranty UFO High Bay Light 1

140LPW High Efficiency 100W HB5 UFO LED High Bay Light IP65 5 Years Warranty

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

1.What’s LGP(PMMA)?

RE: A key component to maximize the uniformity of light, to make the backlight slim and to reorient the line or dot light source such as LED to the plate light source.

2.What’s Lumen?

RE: The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one candle power when all parts of the surface are exactly one foot from the light source.

3.What’s Power factor ?

RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)

4.What’s Smart Lighting ?

RE: Automated lighting control using sensors and /or scheduling switches.

5.What’s Watt ?

RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.

6.How to explain “ZigBee“ ?

RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.

100W UFO LED High Bay Light Die Cast Aluminum Material 5 Years Guarantee
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
