Name: Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-HB100-EG
Availability: InStock

Home Products LED Highbay Light

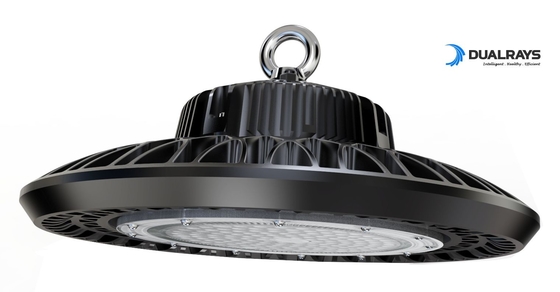

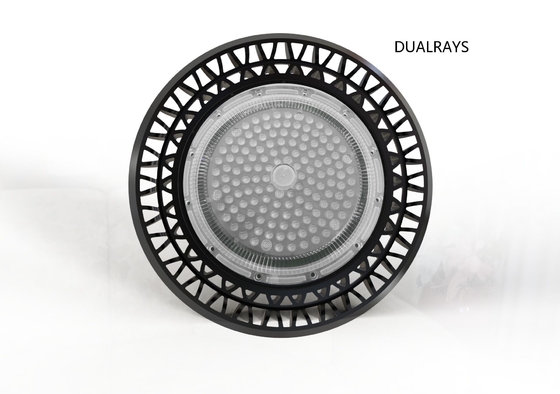

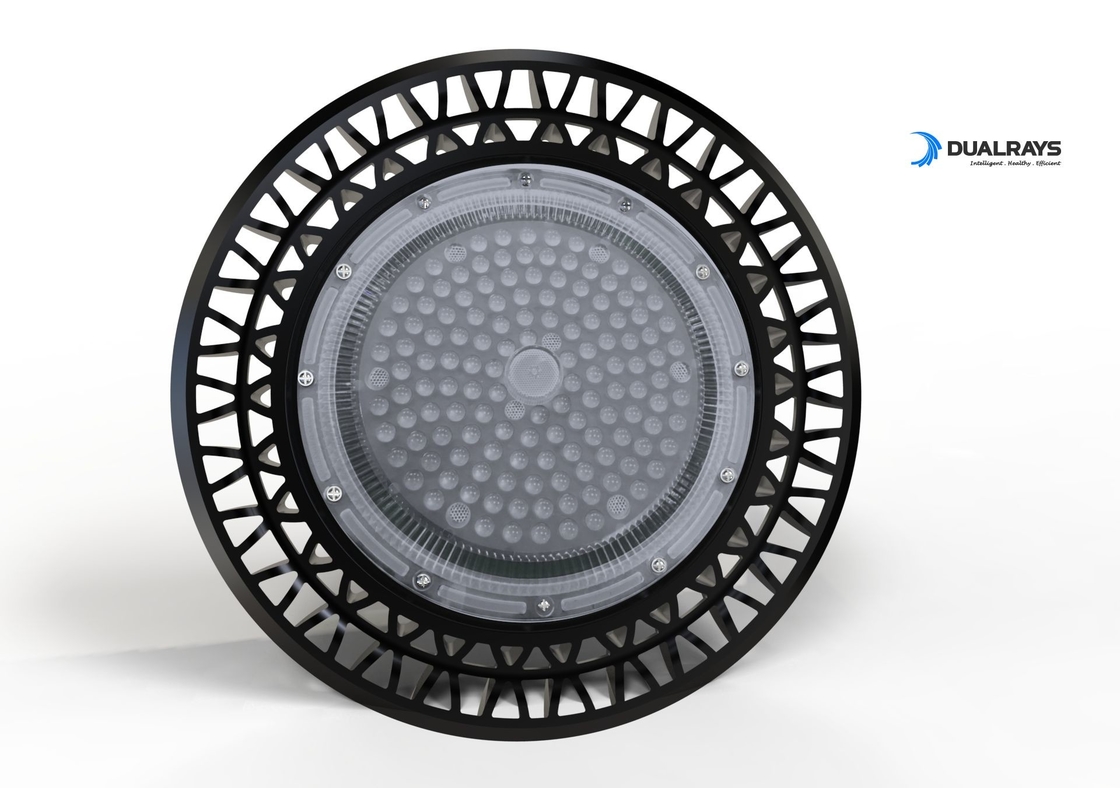

Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB100-EG

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Luminous Flux:	14000±5%	Color Temperature:	WW:3000K NW: 4000K DW:5000K CW: 5700±200K
Power Supply:	Meanwell/Sosen	UGR:	<25
Power Factor:	>0.95	Material:	Aluminum
Highlight:	led flat panel light fixture , high bay led shop lights

Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting

Production specification:

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;

> IP65 and IK10 for all industrial areas of application;

> Driver and housing separated by spacers;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

>Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects

> Factories

> warehouse

> workshop

> Exhibitions & showrooms

> Supermarket & game shop

Model No	/	DR-HB100-EG	DR-HB150-CG	DR-HB200-EG	DR-HB240-EG
Rated Power	W	100	150	200	240
LEDs Typ/Qty	SMD 3030	161	224	322	364
Luminous Flux	LM	14,000±5%	21,000±5%	28,000±5%	33,600±5%
Efficiency	LPW	140	140	140	140
Color Temperature	CCT/K	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	/	1-10VDC /DALI / PIR Sensor
Protections	/	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	/	Grade A
Color Index	Ra	>80Ra
Beam Angle	Degree	60°/120° for option
IP/Rating	/	IP65
AC Input Vol	V	AC100~240V 50/60Hz
Power Factor	PF	PF>0.95
Starting Time	s	<0.1
Lumen Maintenance @ 6000 hrs	Hours	>95%
Switching Cycle before Failure	Times	100,000
Life Span	Hours	50,000
Warranty	Years	5 years

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting 6

Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting 11

Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting 13
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Dualrays UFO LED High Bay Light IP65 with 1 To 10V DALI for ceiling mounting 14

Q1: What is the warranty for the HB5 LED high bay?

RE: For the HB5 Series LED high bay,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q6: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q7: Dimming functions?

RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Q8: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q9:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
