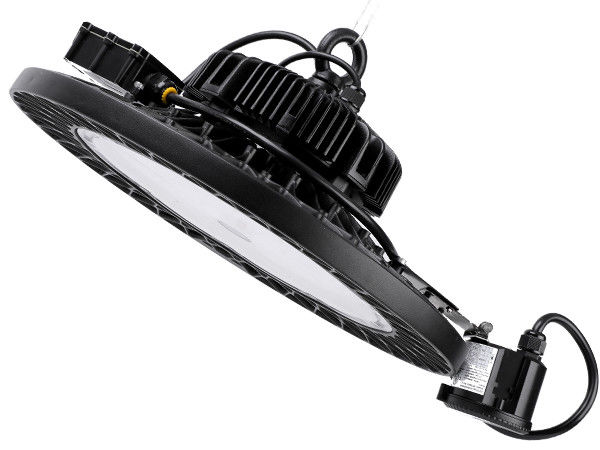

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation

  • 300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation
  • 300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation
  • 300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation
  • 300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation
300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB100-EG2
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Negotiated After Inquiry
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Material: Aluminum+PC Power: 100W/150W/200W/240W/300W
Certificate: CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available CCT: 3000/4000/5000/5700K±300K
CRI: >83Ra Warranty: 5 Years
Installation(Optional): Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting Operation Temp/℃: -40°C To + 50°C(-40°F To 122°F)
Storage Temp/℃: -40°C To + 65°C(-40°F To 149°F) Finishing Color(Optional): Black RAL9017 / White RAL9016
High Light:

high bay led shop lights

,

wireless led outdoor flood lights

DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation





300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 0

Model No. DR-HB100-EGXP DR-HB150-EGXP DR-HB200-EGXP DR-HB240-EGXP DR-HB300-EGXP
System Watts/W 100W 150W 200W 240W 300W
System Efficiency/LPW 140LPW
Lumen Output/lm 14.000±5% 21.000±5% 28.000±5% 33.600±5% 42.000±5%
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell HBG/ELG/HLG,Sosen
Surge Protection 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K



300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 1

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 2

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 3
300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 4

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 5

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 6

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 7

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 8

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 9

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 10

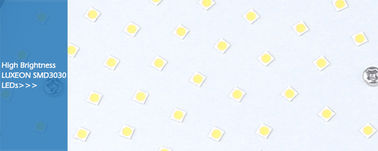

> Highly brightness LUXEON SMD3030 LEDs,energy efficient - up to 160 lm/w;

> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications,PMMA,glass cover available;
> IP65 and IK10 for all industrial areas of application;
> Driver and housing separated by spacers;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Options:
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen
> Controls and Dimming

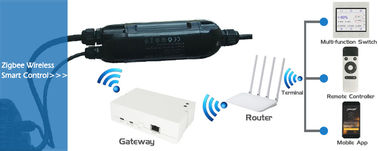

·Zigbee wireless control / 1-10V Dimming / Motion sensor / Emergency / DALI control / Daylight sensor.
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects.

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 11

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 12

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 13

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 14

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 15

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 16



300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 17

300W DUALRAYS HB5 UFO LED High Bay Loop Hanging Ceiling Mounting Wall Mounting Pipe Mounting Installation 18
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
