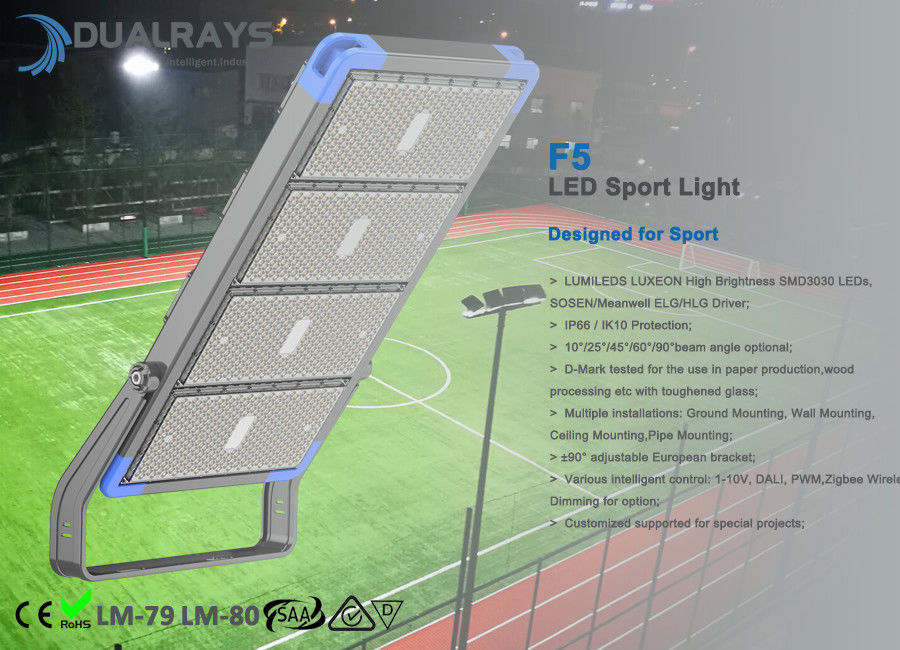

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL500-EG2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminium Alloy +PC	Input Voltage:	AC100-277V 50-60Hz
Power Efficiency:	>92%	Power Factor:	>0.95
CRI:	>70Ra (>80Ra For Option)	IP Rating:	IP66
CCT:	3000/4000/5700/6500K±200K	Certificate:	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available
High Light:	led stadium floodlights , wireless led outdoor flood lights

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 6

Model No.	DR-FL500-EGXP
System Watts/W	500W
System Efficiency/LPW	150LPW
Lumen Output/lm	75.000±5%
Dimming(Optional)	0/1-10V/PWM/DALI/Zigbee
Installation(Optional)	Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting
Certificate	CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Protection Class	ClassⅠ
LED Driver	Meanwell XLG/ELG/HLG,Sosen
Surge Protection	6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<6
CCT/K	3000K/4000K/5000K/5700K/6500K

Efficiency:
STANDARDLine:
PROLine: 150LPW
PRIMELine:

Features:
* LUMILEDS LUXEON High Brightness SMD3030 LEDs,SOSEN/Meanwell Driver;
* IP65 Protection;
* 10°/25°/45°/60°/90°beam angle optional;;
* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations:Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting;
* Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;;

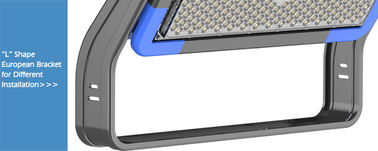

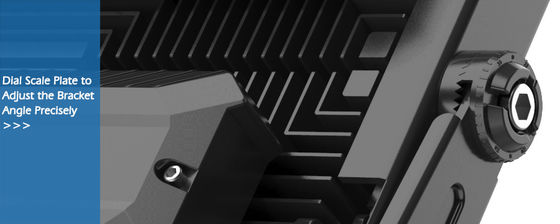

* ±90° adjustable European bracket;
* Customized supported for special projects;

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 7

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150LPW;

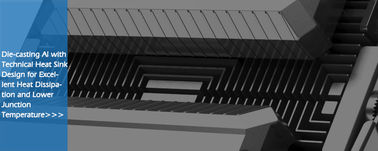

> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications;
> IP66 and IK10 for all industrial areas of application;

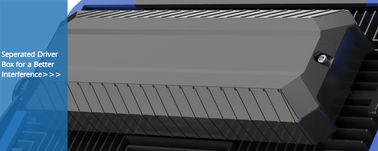

> Driver and housing separated by spacers;
> 10°/25°/45°/60°/90°/130*30°polarized light 60° beam angle optional;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;

Options:
> Driver: ELG/HLG(Retangle),Sosen.
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option.
> ±90° adjustable European bracket.
> Installation:Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting.
> Customized supported for special projects.

> Advertising, Billboard lighting

> Building exterior lighting

> Warehouse, Factory, stair corridors lighting

> Large and small parking, Square, Stadium lighting etc

> Bridges and public places, as well as other industrial and commercial lighting

> Gardens lighting
> Football court,tennis court ect sport lighting area

> Suitable for wet locations

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 14

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 19

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 22

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 23

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 24

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 25

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 26

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 27

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 28

500W High Brightness IP66 Outdoor Sport Field Area Lighting High Mast LED Flood Light 29

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
