| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS/OEM |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-TPL050-EG42 |
| Minimum Order Quantity: | 4PCS/CTN |
|---|---|
| Price: | Negotiated After Inquiry |
| Packaging Details: | Netural Package,color box package,4PCS/CTN,L1555xW200xH230mm |
| Delivery Time: | 5-15 bussiness days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs/month |
| Material: | Aluminium Alloy +PC | Input Voltage: | AC200～240V 50/60Hz |
|---|---|---|---|

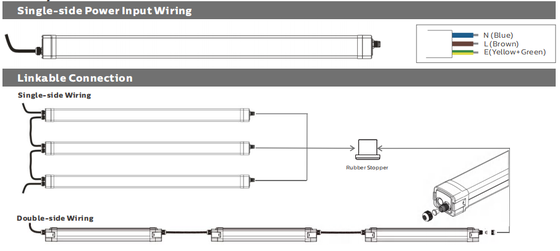

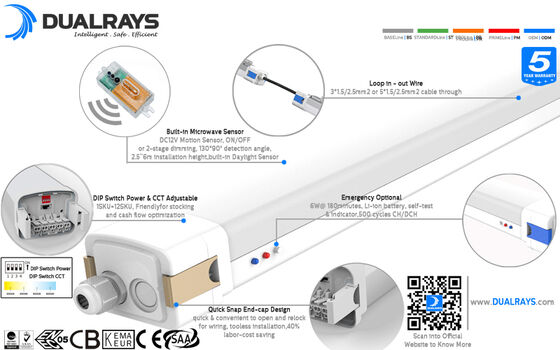

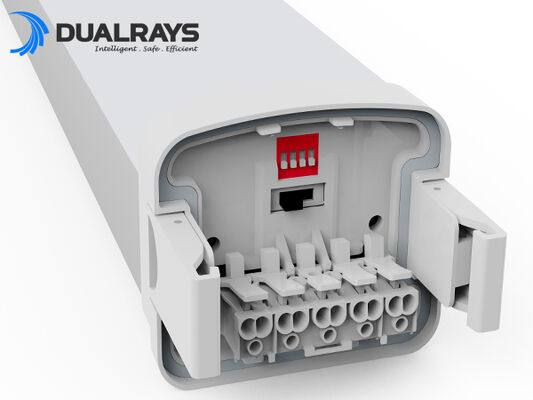

| Innovation: | Buckle Design End-cap,quick & Convenient To Open And Relock For Wiring,greatly Improve Efficiency And Save Labor Cost | Linkable: | Multiple Link With Double Wiring |
| Health: | No UV Or IR And Completely Mercury Free | Driver: | DUALRAYS Own-developed Flicker-free Driver,BOKE DIP Switch Power Adjustable Driver |
| Controls And Dimming: | Zigbee Wireless Control / 1-10V Dimming/DALI | Sensor: | Daylight Sensor/Microwave Sensor |
| Installation: | Suspension, Ceilign Mounted And Adjustable Surface Mount | VAS: | Customized Supported For Special Projects |
| High Light: | explosion proof led lights,dust proof light fixture |
||

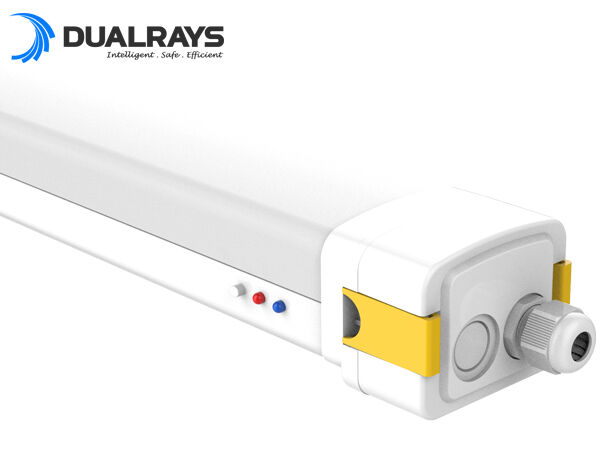

4ft 50 Watt Tri Proof LED Light 160LPW Efficiency Innovative Buckle Design End-cap Quick Convenient to Open and Relock
| Model No. | DR-TPX-EG2XX | DR-TPX-EG3XX | DR-TPX-EG4XX | DR-TPX-EG5XX |
| System Watts/W | 20/30W | 30/40W | 40/50/60W | 50/60/80W |
| Dimension/mm | 600*90*74 | 900*90*74 | 1200*90*74 | 1500*74*74 |
| System Efficiency/LPW | 120LPW/160LPW (Optional) | |||
| Lumen Output/lm | 2.400 .800±5% | 3.600~6.400±5% | 4.800~9.600±5% | 6.000/12.800±5% |
| Finishing Color(Optional) | White RAL9016 | |||
| Protection Class | ClassⅠ/ ClassⅡ | |||

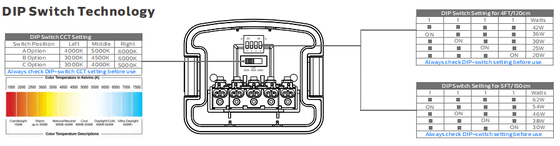

| LED Driver | DUALRAYS / BOKE Flicker-free Driver,DIP Switch Power Adjustment Available | |||
| Dimming(Optional) | 0/1-10V/DALI/Zigbee | |||
| Sensor(Optional) | Daylight sensor/Microwave Sensor | |||
| LEDs Light Source | SMD2835 | |||
| SDCM | <6 | |||
| CCT/K | 3000K/4000K/5000K/5700K/6500K | |||
|
Character/Length
|
2ft
|
3ft
|
4ft
|
5ft
|
|
|
A
|
600mm
|
900mm
|
1200mm
|
1500mm
|
|
|
B
|
90mm
|
90mm
|
90mm
|
90mm
|
|
|
C
|
74mm
|
74mm
|
74mm
|
74mm
|
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
