Full Plastic Housing LED Tri Proof Lamp 4ft 160LPW IP65 For Parking Warehouse Long Life

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-TP040-BG4XX

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277V 50/60Hz	Driver:	BOKE
LED Source:	EPISTAR SMD 2835	CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
UGR:	<22	CRI:	>70Ra/>80Ra
Housing:	Full PC	Applications:	Underground Parking Lot/Facotory/Warehouse...
Installation Methods:	Suspended/Ceiling Mounted/Adjustable Installation For Option	Optional Sensor:	PIR Sensor, Emergency, 1-10V, DALI, Microwave Sensor Is Available;
High Light:	explosion proof led lights , vapor proof led light

Dualrays D2 Series 4ft/40W LED Tri-proof Light 160LPW Efficiency 3 years guarantee emergency 0-10V and DALI dimming optional

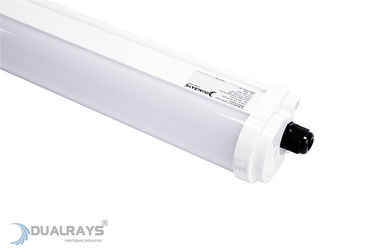

Full Plastic Housing LED Tri Proof Lamp 4ft 160LPW IP65 For Parking Warehouse Long Life 0

Selling Points Diagram:

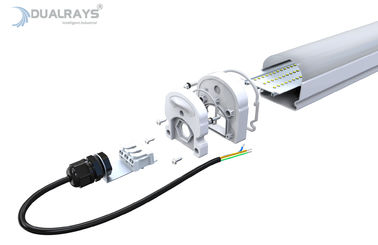

Full Plastic Housing LED Tri Proof Lamp 4ft 160LPW IP65 For Parking Warehouse Long Life 1

* Full plastic housing with high transmittance arcrylic cover,light and economic design concept;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery,black and
white finish. No toxic heavy metals, VOC, or mercury were used in the design;
* BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life,
quick responds,no flicker, lightning protection, PFC function,0-10V,DALI dimming and PIR sensor;
* 100LPW Standard Version,130LPW Proline Version,160LPW Primeline Version for option,CRI>80Ra,more sufficient;
* Suspended/Surface mounted/Adjustable installation for option;

* Water-proof; Dust-proof; Damp-proof; Vapor-proof;
* CE,RoHS,LM79,LM80 listed,3 years guarantee;

Specification:DUALRAYS Optoelectronics D2 Series LED Triproof Li...

* Train,Bus station and Office

* Workshops and warehouse

* Supermarkets

* Exhibition center

* Airport Hall
* Corridor/Gallery/Corridor

* Underground garage

Item	Symbol	2ft/20W	4ft/40W	5ft/50W
Model No	/	DR-TPL020-BG21	DR-TPL040-BG41	DR-TPL050-BG51
Rated Power	W	20	40	50
LEDs Typ/Qty	SMD 2835	144PCS	273PCS	312 PCS
Luminous Flux	Clear Frost	3,200±5% 3,000±5%	6,400±5% 6,000±5%	8,000±5% 7,500±5%
Efficiency	Clear Frost	Typ.160 Typ.150	Typ.160 Typ.150	Typ.160 Typ.150
Color Temperature	CCT/K	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Color Index	Ra	>80Ra
Beam Angle	Degree	120
IP/Rating	/	IP65
AC Input Vol	V	AC200~277V 50-60Hz
Power Factor	PF	PF>0.95
Lumen Maintenance @ 6000 hrs	Hours	>80%
Switching Cycle before Failure	Times	100,000
Life Span	Hours	50,000
Warranty	Years	3 years
Operation Temperature	℃	-15 ~ +50℃
Storage Temperature	℃	-25 ~ +55℃

Character/Length	2ft	4ft	5ft
A	600mm	1200mm	1500mm
B	74mm	74mm	74mm
C	74m	74mm	74mm

(I) Emergency Function

Model No.	Emergency Time (Hours)	Emergency Power (W)	Battery Parameters
DR-TPL020-BG21	3/2/1 hours for option	10W	7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41	3/2/1 hours for option	10W	11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51	3/2/1 hours for option	10W	11.1V/8800/6000/3000mAh Lithium Battery

1. Interior circuit with emergency device has been already connected;

2 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)

3 Indicator color(Green–main power, Yellow–malfunction,Red-Charging)

4 Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
Remark: MSDS Test Report is available.

(II) 0-10V Dimming

(II) Microwave Sensor 2 Stage Dimming Type

a. With 5.8G Hz microwave technology, stable detection performance and long life time.

b. Detection zone Max. is 16m*8m (D*H) MC003V/D.

Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.

Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.

c. Water proof sensor with IP65 rating.

d. Built-in adjustable daylight sensor.

e. 2 step dimming function 100% ---> low light (Never turn off)

f. 3 step dimming function

100% ---> low light(10%,20%,30%,40%,50%) ---> off

g. Automatic dimming when used in combination with 1-10V dimmable control gears.

Packaging Information

Size	Net Weight/PCS	Outer Carton Size	G.W	Quantity/CTN
2ft	0.9kg	L670xW440xH200mm	13.2kg	10PCS
4ft	1.8kg	L1270xW360xH200mm	17.5kg	8PCS
5ft	2.1kg	L1570xW360xH200mm	20.6kg	8PCS

Shipment
Full Plastic Housing LED Tri Proof Lamp 4ft 160LPW IP65 For Parking Warehouse Long Life 13

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Full Plastic Housing LED Tri Proof Lamp 4ft 160LPW IP65 For Parking Warehouse Long Life 14

Q1: What is the warranty?

RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays' LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

Q9: What is the CRI?

RE: Ra>80 for standard.

Q10: IP Rating?

RE: IP65.

Q11: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?

RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?

RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
