Home ProductsSMD LED Floodlight

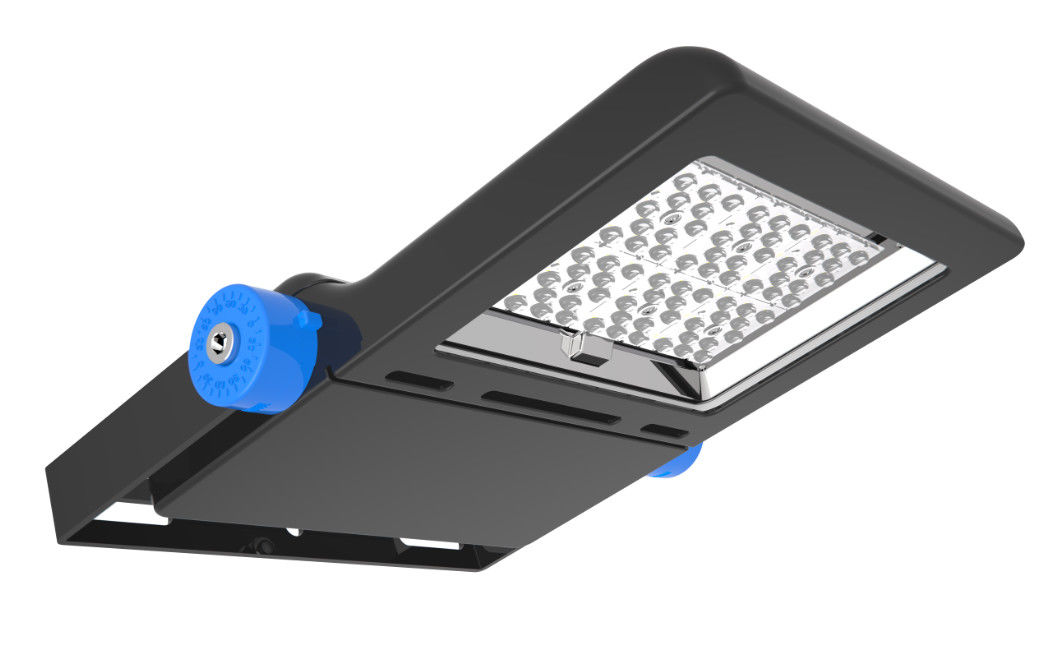

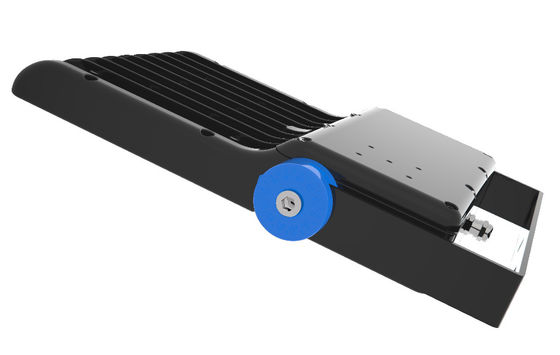

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application

  • 200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application
  • 200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application
  • 200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application
  • 200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application
200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL200-CG1
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Please inquiry for latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Warranty: 5 Years CRI: >80
Life Span: >50000h Housing: Die-casting AL
Cable: 3*0.75sqmm Flux: 28000lm
High Light:

led flat panel light fixture

,

wireless led outdoor flood lights

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 0



> 200W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 1

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 2

Model No. DR-FL050-CGX DR-FL100-CGX DR-FL150-CGX DR-FL200-CGX DR-FL300-CGX
System Watts/W 50W 100W 150W 200W 300W
System Efficiency/LPW 6.800±5% 13.500±5% 20.000±5% 27.000±5% 33.200±5%
Efficiency/ lm/w 135LM/W
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <5
CCT/K 3000K/4000K/5000K/5700K/6500K
CRI/Ra >80Ra (>70Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle(Optional) 30° / 60° / 90° / 120°
UGR <25
Surge Protection 6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LED Driver Sosen, Meanwell ELG/ HLG
IP Rating IP65
Dimming(Optional) 0/1-10V/DALI/Zigbee
Emergency(Optional) Available
Protection Class ClassⅠ
Material Aluminum+PC
Lifespan/hrs >62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ -40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ -40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Ceiling Mounting, Wall Mounting, Ground Mounting
Certificate CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available;



200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 3
Character/Power
100W
150W
200W
240W
300W
200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 4
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 5
200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 6
200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 7
200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 8200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 9
200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 10

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 11

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 12

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 13

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 14

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 15
Model No.
Net Weight/Kg
Outer Carton Size/mm
Gross Weight/Kg
QTY”/CTN
DR-FL050-CGXX
3.6
355*350*165
4.5
1PCS/CTN
DR-FL100-CGXX
3.8
355*350*165
4.7
1PCS/CTN
DR-FL150-CGXX
4.5
415*410*175
5.8
1PCS/CTN
DR-FL200-CGXX
5.7
475*470*195
7.3
1PCS/CTN
DR-FL300-CGXX
9.3
475*470*195
11.5
1PCS/CTN

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 16
200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 17

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 18

200W SMD FLOOD LIGHT Light with PC LENS for Industrial Areas Application 19
