| Place of Origin: | China |
| Brand Name: | Dualrays |
| Certification: | CE, Rohs, |
| Model Number: | DR-ULM055-DE5C |
| Minimum Order Quantity: | 8pcs |
|---|---|
| Price: | Standard |
| Packaging Details: | Neutral Package,color box package,8PCS/CTN, |
| Delivery Time: | 15 business days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100000PCS/Month |
| Rated Power: | 55W | Luminous Flux: | 8,250±5% |
|---|---|---|---|
| Color Temperature: | 3000K~6000K | Color Index: | >83Ra |
| Switching Cycle Before Failure: | 100,000 | Warranty: | 5 Years |
| High Light: | led linear high bay,linear ceiling light |
||

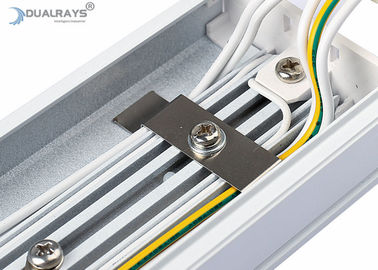

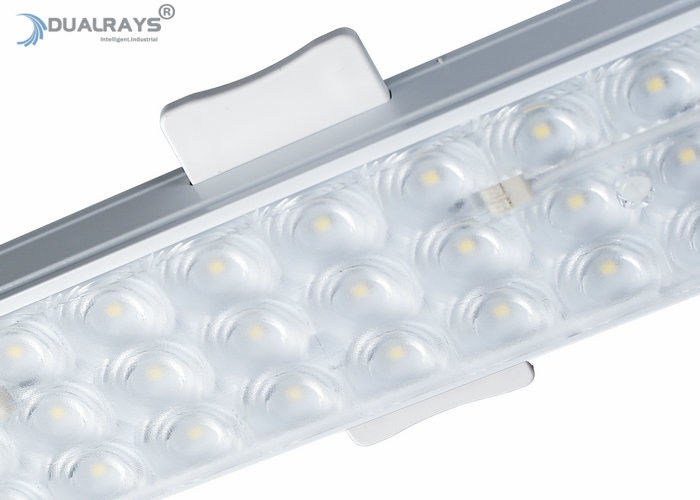

5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
| Item | Symbol |
Description |
| Model No | / | DR-ULM055-DE5C |
| Length | mm | 1430 |
| Color | / | White RAL 9003 |
| LEDs source | / | SMD2835 |
| Driver | / | BOKE |
| Efficiency | LPW | 150 |
| Colo Temperature | CCT/K | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 6000±200K |
| Dimming Function | / | DALI |
| Protections | / | Short circuit/Over current/Over voltage/Over temperature |
| Anti-salty spray | / | Grade A |
| Color Index | Ra | >80Ra |
| Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
| AC Input Vol | V | AC220-240V/DC180-264V |
| Output Vol | V | DC32V |
| Power Factor | PF | PF>0.95 |
| Lumen Maintenance @ 6000 hrs | Hours | >80% |
| Switching Cycle before Failure | Times | 100,000 |
| Life Span | Hours | 50,000 |
| Warranty | Years | 5 years |
| Operation Temperature | ℃ | -40 ~ +55℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
Feature
a. Private Mold for PMMA Extrusion lens,much more durable and elegant normal PC Injection lens in the market;
b. This model was used in Germany replacement;
c. Osram adjustable power with switch for more power choice during actual occasions,AC/DC input;
d. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
Advantage
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Supply different version with different configurations for our customers.
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
